can dhtmlxForm display like this?

Suite and Optimus Suite 5
#1

two columns . and every cell can input any elements?

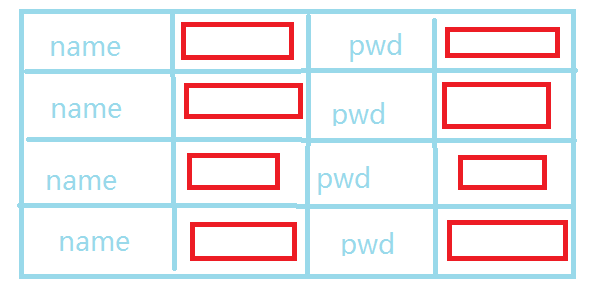

like this picture.

#2

Hello
You need to use type “block” to collect items in a column and type “newcolunm” to set blocks inline. The structure can be the next:

formData = [ {type: "settings", inputWidth: 130, labelWidth: 50, labelAlign: "left"}, {type: "block", name: "left_block", width: 210, list: [ {type: "input" , name: "inp_L1", label: "Name:"}, {type: "input" , name: "inp_L2", label: "Name:"}, {type: "input" , name: "inp_L3", label: "Name:"}, {type: "input" , name: "inp_L4", label: "Name:"} ]}, {type: "newcolumn", offsetLeft: 5}, {type: "block", name: "right_block", width: 210, list: [ {type: "password" , name: "inp_R1", label: "Pass:"}, {type: "password" , name: "inp_R2", label: "Pass:"}, {type: "password" , name: "inp_R3", label: "Pass:"}, {type: "password" , name: "inp_R4", label: "Pass:"} ]} ];

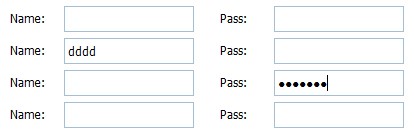

The result of this structure is the next (some letters are typed as a sample):

#3

thank you very much.

#4

You are welcome!
