Coloring the event headers in the pdf generated by printing

Scheduler Javascript
#1

Hi,

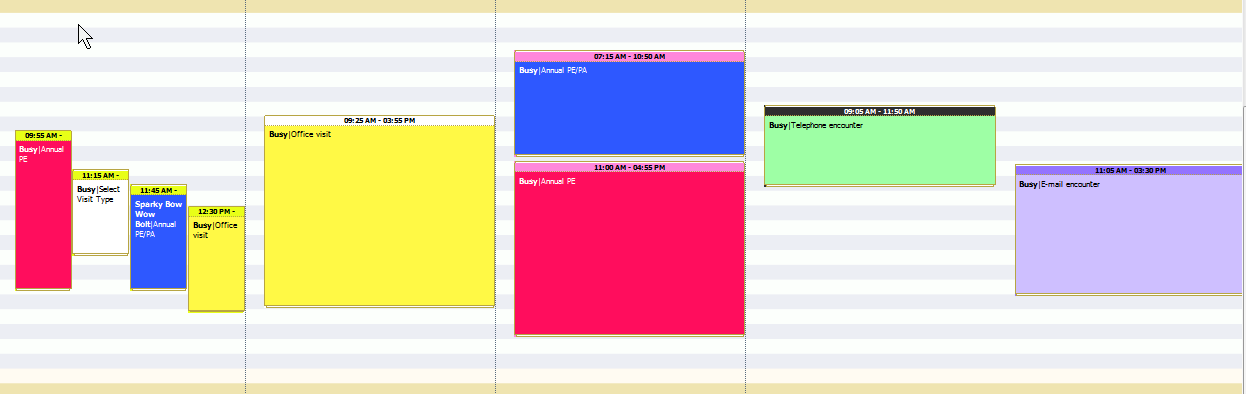

I am using the php package provided for generating the pdf. I have used a different colors in the title bar and the body of the event as is shown in the pic below.

Patagonia Health EMR Calendar - Mozilla Firefox_2011-03-18_10-21-22.png1246×394 11.7 KB

Now The pdf that is generated look like the image below.

22.png1274×801 56.7 KB

As you can see the headers of the events does not have the desired color. When I examined the code that was being generated for pdf generation I saw that for each event bgColor and text color are being added in the body tag as shown below

<header><![CDATA[09:05 AM - 11:50 AM]]></header><body backgroundColor='rgb(158, 255, 165)' color='rgb(0, 0, 0)'><![CDATA[Busy|Telephone encounter]]></body>

The header is missing the colors. So i tried adding the colors in the header tag too. As shown below

<header backgroundColor='rgb(46, 46, 46)' color='rgb(255, 255, 255)'><![CDATA[09:05 AM - 11:50 AM]]></header><body backgroundColor='rgb(158, 255, 165)' color='rgb(0, 0, 0)'><![CDATA[Busy|Telephone encounter]]></body>

But this didnt work. So is there any way I can color the headers of the events too? Mayb some attribute I need to add in the body tag of the above code?

#2

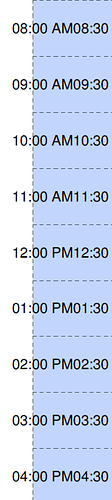

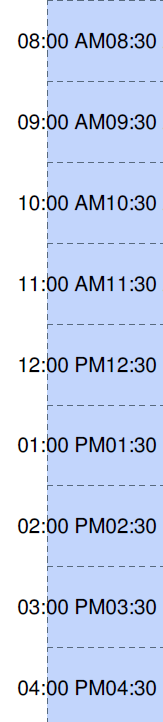

Moreover I am using timesteps of 15 and 30 minutes. And both of them the pdf is generated not
correctly formatted as show in the pdf below. Let me know how can I correct that?

33.png163×722 21 KB

#3

As for header coloring - existing version of server side code can set only one color for event. So simple adding atrributes to client side xml data will not help

Moreover I am using timesteps of 15 and 30 minutes
If you are using html formatting in the scale cells - beware that it will not be preserved. Only text data goes to export.
The output on screenshot still is not valid (overflow over borders), we will look in it.
