editor on form

Suite and Optimus Suite 5
#1

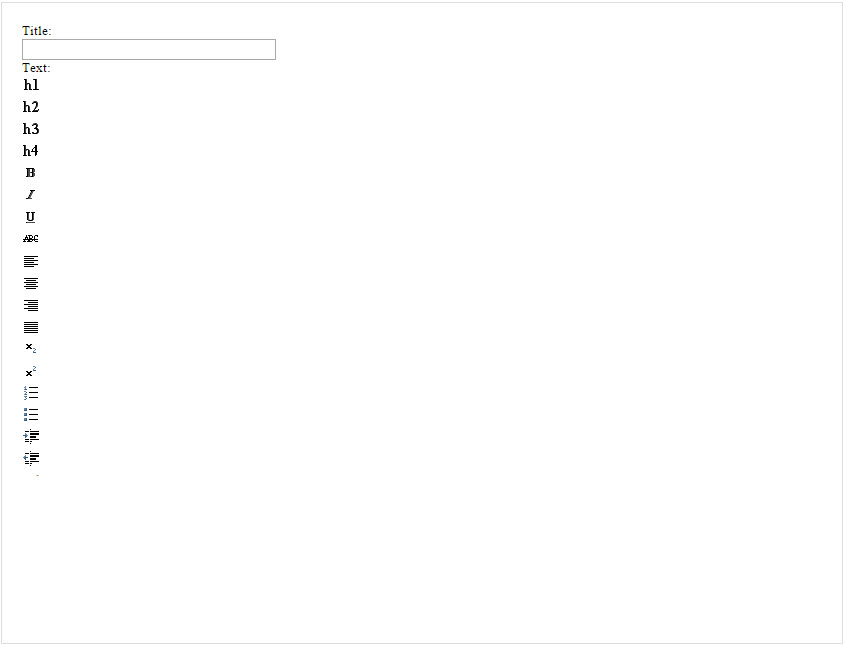

JTest.jpg845×647 15.2 KB

Hi.
I 've encountered issue with editor placed inside a form. I get unexpected behaviour with toolbar displayed vertical and also missing icons (I’m using dxh_terrace skin). The form’s XML structure is:

<items> <item type="input" name="title" label="Title:" labelWidth="80" labelAlign="right" inputWidth="250"/> <item type="editor" name="msg" label="Text:" labelWidth="80" labelAlign="right" inputWidth="650" inputHeight="400" offsetTop="10"/> </items>
I’ve created small sample to explain the issue I’m getting. What am I missing ( probably some files included but don’t know what)?
If I want to get any images shown I need to include ‘dhxeditor_dhx_skyblue’ folder (in my example I’ve changed folder name to ‘–dhxeditor_dhx_skyblue’, for demonstration) even if I want dhx_terrace skin, why?
Thanks in advance.
JTest.zip (159 KB)

#2

Hello
You need to use one common skin for all application and set skins for all components id you web or terrace theme

#3

But I’m using only dhx_terrace:

[code]

JTest
<link rel="stylesheet" type="text/css" href="codebase/skins/dhtmlxeditor_dhx_terrace.css">
<link rel="stylesheet" type="text/css" href="codebase/skins/dhtmlxtoolbar_dhx_terrace.css">
<link rel="stylesheet" type="text/css" href="codebase/skins/dhtmlxform_dhx_terrace.css">
<link rel="stylesheet" type="text/css" href="codebase/dhtmlx.css">

<script type="text/javascript" src="codebase/dhtmlxcommon.js"></script>
<script type="text/javascript" src="codebase/dhtmlxform.js"></script>
<script type="text/javascript" src="codebase/dhtmlxtoolbar.js"></script>
<script type="text/javascript" src="codebase/dhtmlxeditor.js"></script>
<script type="text/javascript" src="codebase/ext/dhtmlxeditor_ext.js"></script>
<script type="text/javascript" src="codebase/ext/dhtmlxform_item_editor.js"></script>
<script type="text/javascript" src="codebase/dhtmlx.js"></script>
[/code]
#4

Any thoughts on this? I’m in a bit of a hurry, please.

#5

Try to add after

dhtmlx.image_path = "codebase/imgs/";

the next line:

dhtmlx.skin = "dhx_terrace";
