Feature request: Show deadline and other bar annotations

Gantt
#1

I am trying to replace Microsoft Project.

My users want to use DHTMLX Gantt to level their workloads. I can put the field “deadline_date” into each task and display it in the table but I cannot find a way to display it on the bar.

This falls into the more general requirement of bar annotation. As I am sure you know that Microsoft project allows several annotations. Personally I use,

  • deadline
  • text to right of bar

alot.

Kind regards,
James

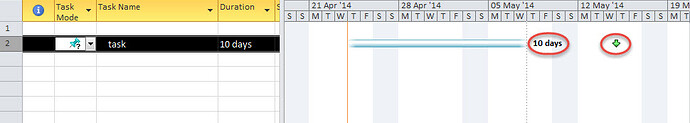

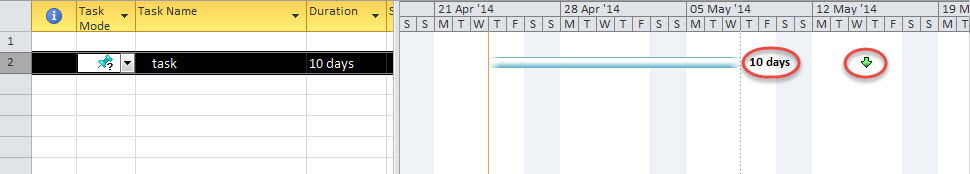

deadline.jpg970×174 37 KB

#2

You can use templates to define right and left text blocks
Please check docs.dhtmlx.com/gantt/desktop__t … _task.html

#3

Hi,
regarding deadlines, you can add a DOM element for a deadline into the task html, and move it to right place using absolute positioning.
docs.dhtmlx.com/gantt/api__gantt … mdate.html
docs.dhtmlx.com/gantt/api__gantt … plate.html

You can use the similar aproach that has been used to display the child tasks inside the projects, described in this post
viewtopic.php?f=15&t=36040

#4

Great support from you both. (Sorry the first question was an RTFM).

I will have a go and then get back to you.
