Came across this issue while trying to export the Gantt to PDF.

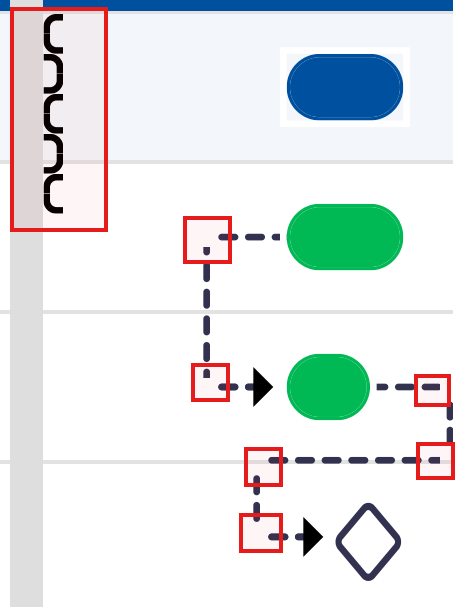

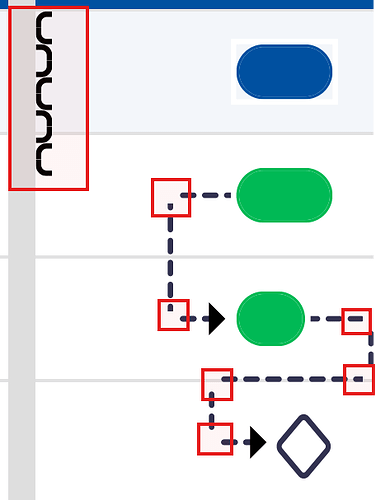

All the corners stack on each other as shown in the image.
It works fine on the app though.
I have also noted that some CSS style properties/functions like display:flex, color-mix, linear-gradient, curved outlines and etc do not work when exported to a pdf file. Are these modern style properties not supported in Gantt PDF export?
Hello Pavi,
I tried to reproduce the issue in the following snippet, but the modern styles are exported correctly:
Probably, the issue in your case is related to some custom styles, but as I don’t see your code, it is hard to suggest what might be wrong. You can add your configuration to the snippet, make sure the issue is reproduced, then click on the Save button and share the link. Then I will be able to check what might be wrong.
Also, if you use an old version of the standalone export module, this should explain why some styles don’t work. To make them work, you need to update the export module. You can check the list of changes in the following article:
When I checked earlier versions, the 0.6.7 version (that uses Chromium 80) supports the linear-gradient and curved outlines, but it doesn’t work with the color-mix property. So, if none of them work, the export module must be really old and not expected to work with modern Gantt versions.
