How can dhtmlxtabbar show the dhtmlxform?

Suite and Optimus Suite 5
#1

this is my code. it cannot show the form.

Attach tabbar #myToolbar { margin: 10px; } var myToolbar; var myPop; var myTabbar; var myform; function doOnLoad() { myToolbar = new dhtmlXToolbarObject({ parent: "myToolbar", icons_path: "../common/imgs/", xml: "../common/toolbar.xml", onload: function() { myToolbar.setItemText("workbut", "Tabbar"); myPop = new dhtmlXPopup({ toolbar: myToolbar, id: "workbut" }); myPop.attachEvent("onShow", function(){ if (!myTabbar) { myTabbar = myPop.attachTabbar(350, 300, { xml: "../common/tabbar.xml" }); } myform = myTabbar.tabs("a1").attachForm(); myform.loadStruct("./form.json"); });
			}
		});

	}

</script>

this is form json:

[
{type: “settings”, position: “label-left”, labelWidth: 130, inputWidth: 120, offsetLeft: 10},
{type: “input”, label: “Login”, value: “adminus”, offsetTop: 10},
{type: “password”, label: “Password”, value: “123”},
{type: “checkbox”, label: “Remember me”, checked: true},
{type: “button”, value: “Proceed”}
]

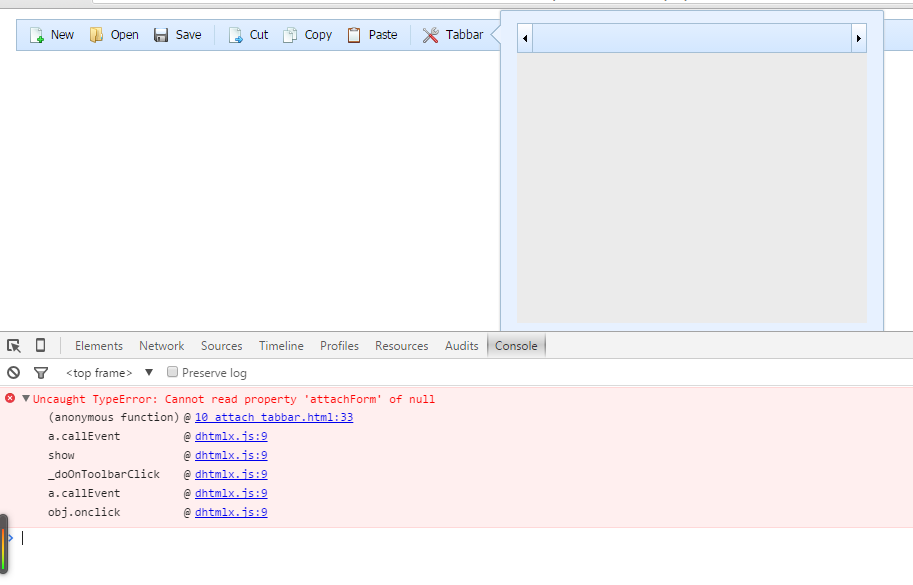

1.png913×585 29.2 KB

#2

Hello
You need to call attachTabbar method when xml is loaded.
In your case it can be the next way:

myPop.attachEvent("onShow", function(){ if (!myTabbar) { myTabbar = myPop.attachTabbar(350, 300, { xml: "tabbar.xml" }); myTabbar.attachEvent("onXLE", function(){ myform = myTabbar.tabs("a1").attachForm(); myform.loadStruct("form.json"); }); } });
