How to wrap a line

Gantt
#1

1745393048991
17453930489911494×379 5.63 KB

1745393048991
17453930489911494×379 5.63 KB

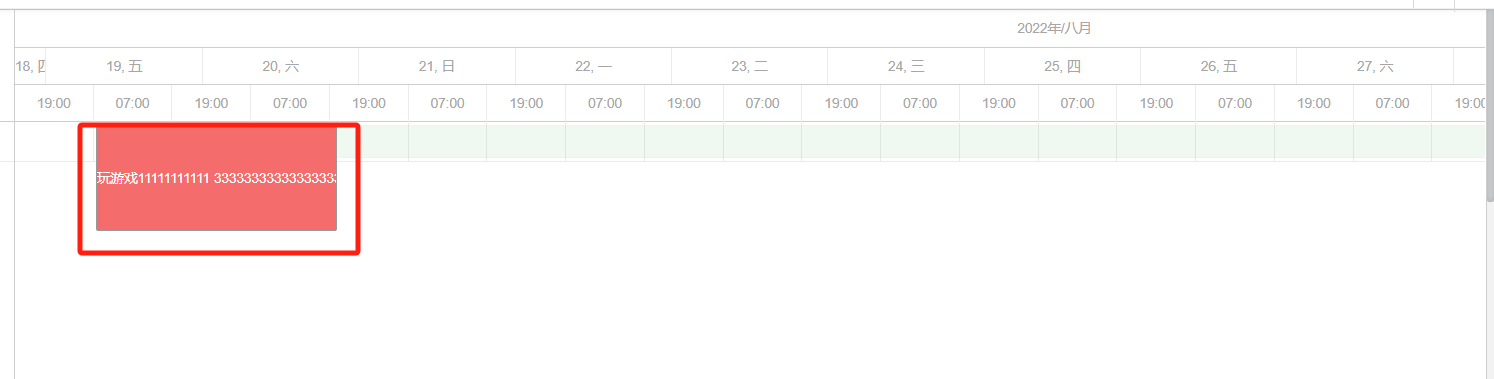

If the text in a task is long and not fully displayed, how to automatically wrap it

#2

Hello,
You can try the following CSS styles:

.gantt_tree_content,
.gantt_task_content {
    line-height: 12px;
    white-space: normal;
    overflow-wrap: break-word;
}

Here is an example: DHTMLX Snippet Tool

#3

Now there is another issue, the height is fixed, and if there are too many words, it will still cause incomplete display

#4

Hello,
For automatic height adjustment, you’ll need to add some logic. Here’s how you can do it:

gantt.attachEvent('onDataRender', () => {
    const textCells = document.querySelectorAll(`[data-column-name='text']`);

    textCells.forEach((el) => {
        const taskId = el.closest('.gantt_row')?.dataset?.taskId;

        if (taskId) {
            const task = gantt.getTask(taskId);
            const textContent = el.querySelector('.gantt_tree_content');
            const scrollHeight = textContent.scrollHeight;

            if (!task.row_height || task.row_height < scrollHeight) {
                task.row_height = scrollHeight;

                setTimeout(() => {
                    gantt.updateTask(task.id);
                }, 0);
            }
        }
    });
});

Please see an example: DHTMLX Snippet Tool

#5

Thank you for helping me solve this problem!
