Just display a bunch of text in a form. Possible?

Suite and Optimus Suite 5
#1

I have duckduckgo’d and googled for this a lot, so I think the answer is no.
But just in case, I thought I’d try here:

Is it possible to put some text inside a form? Have a little explanation underneath a button?
Put some poetry above a frameset?
Maybe even a picture of someone touching her nose after a label?

#2

You can use the next features for using text in form:

  1. template dhtmlx.com/docs/products/dht … plate.html
  2. custom item dhtmlx.com/docs/products/dht … ustom.html
  3. tooltip dhtmlx.com/docs/products/dht … ltips.html
  4. help and ifo dhtmlx.com/docs/products/dht … _info.html
#3

Awesome, note: {} is what I am looking for.
Thank you for linking to the resources!

#4

I meant note and template. :slight_smile:
Couldn’t find the edit button.

#5

You are welcome :slight_smile:

#6

For notes it doesn’t really work as expected though. :nerd:

#7

You need to apply width for this note:

note: { text: "Enter your project name...", width: 100 }

#8

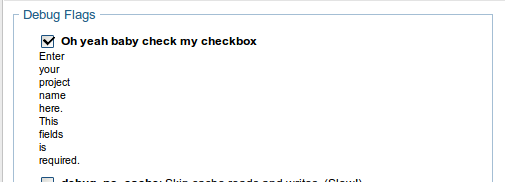

This changes the position of everything.

{type: "fieldset", name: "flags", label: "Debug Flags", width:defaultWidth, offsetLeft: 10, list:[ { type: "checkbox", name: "debug_no_limit", label: "<b>Oh yeah baby check my checkbox</b>", position:"label-right", checked: true, note : { text : 'This text is rather long, it will span multiple pixels, probably over 9000.', width: 400 } }, // etc

I’m not doing anything fancy. Just default css from the package and the skin builder. I think note is not meant to be used for this.

#9

-addition-

I can use template with a callback function that returns a div that has some custom styling and a custom offsetLeft to emulate having a descriptive smallprint, but it’s a rather ugly solution.

I was hoping I wouldn’t be the first to struggle with this and there would be a more proper solution, like being able to simply add a text-node to a form. :slight_smile:

#10

Can’t reproduce locally.
Could you provide the whole json and form’c container size and type?
Or the best way is providint completed demo
docs.dhtmlx.com/doku.php?id=othe … leted_demo

#11

How can you not reproduce? I can not not reproduce. :nerd:

I attached the complete demo for you. :slight_smile:
Tested and verified in Firefox 24 and Chromium 28.
Complete Demo - forms.zip (619 KB)

#12

Hi

accrding your demo

  1. is ok
  2. you need to specify labelWidth:400 for example
  3. note rendered under input, default note width equal to input’s width
  4. due you set note width:400 - label just “jumped” to next line dure parent width 480 (fieldset)

please provide a screenshot of awaited result?
(I guess you want to place note under checkbox’s label?)

#13

Yes, I want

[checkbox] "My label text" Note with description here

#14

And thanks for looking into it!

(I’m so used to editing my posts that I am too quick to press submit every time. This one doesn’t support editing, right? Or only for seasoned members?)

#15

Hi

unfortunately form does not support requested behaviour,
you can use label as workaround, for example:

{type: "checkbox", label: "Remember me", checked: true}, {type: "label", label: "this is comment for checkbox", className: "label_note"}

and css

.dhxform_item_label_left.label_note .dhxform_txt_label2 { font-weight: normal; font-size: 11px; margin: 0px 1px 5px 1px; padding: 0px; color: #909090; }

#16

This works, thank you.
