No data visibile and no log info

Suite and Optimus Suite 5
#1

I am using the DP for the Grid but I am not getting any output of data. I have verified the setting in my database and connector file and still nothing. The debugger shows nothing what am I doing wrong?

html page

<!DOCTYPE html>
<html>
	<head>
	<title>Test Page</title>
	<meta name="viewport" content="width=device-width, initial-scale=1">
	<link rel="stylesheet" href="http://code.jquery.com/mobile/1.1.1/jquery.mobile-1.1.1.min.css" />
	<script src="http://code.jquery.com/jquery-1.7.1.min.js"></script>
	<script src="http://code.jquery.com/mobile/1.1.1/jquery.mobile-1.1.1.min.js"></script>

<style type="text/css">
	@import url(http://fonts.googleapis.com/css?family=Allura);
	@import url(http://fonts.googleapis.com/css?family=Arizonia);
	#logo {
		font-size: 1.9em
		font-family 'Arizonia', cursive;
		color: #9400D3; /*#68228B; /*#B23AEE; /*#8A2BE2; */
	}
	.splash {
		color: #fff;
	}
	html {
		width:240px;
		height:600px;
	}
</style>

</head>
<body>

<div data-role="page" data-theme="a" id="admin_page" >

	<!-- Grid code HERE ------------------------------------------------->
	<link rel="stylesheet" type="text/css" href="dhtmlxSuite/dhtmlxGrid/codebase/dhtmlxgrid.css"/>
	<link rel="stylesheet" type="text/css" href="dhtmlxSuite/dhtmlxGrid/codebase/dhtmlxgrid_skins.css">
    <script src="dhtmlxSuite/dhtmlxGrid/codebase/dhtmlxcommon.js"></script>
    <script src="dhtmlxSuite/dhtmlxGrid/codebase/dhtmlxgrid.js"></script>
    <script src="dhtmlxSuite/dhtmlxGrid/codebase/dhtmlxgridcell.js"></script>
	<script src="dhtmlxSuite/dhtmlxDataProcessor/codebase/dhtmlxdataprocessor.js"></script>
	<script src="dhtmlxSuite/dhtmlxDataProcessor/codebase/dhtmlxdataprocessor_debug.js" type="text/javascript"></script>
	<script type="text/javascript" >
	$( '#admin_page' ).live( 'pageinit',function(event){

  		$('#clients').live('click', function(){
   	 		mygrid = new dhtmlXGridObject('gridbox');
			mygrid.setImagePath("dhtmlxSuite/dhtmlxGrid/codebase/imgs/");//path to images required by grid
			mygrid.setHeader("name, address, town, phone,email");//set column names
			mygrid.setInitWidths("100,250,100,100,100");//set column width in px
			mygrid.setColAlign("right,left, center,center,center");//set column values align
			mygrid.setColTypes("ro,ed,ed,ed,ed");//set column types
			mygrid.setColSorting("str,str,str,str,str");//set sorting
			mygrid.setSkin("dhx_classic");//set grid skin
			mygrid.init();//initialize grid
			mygrid.load('db_connector.php'); //load data

  			var dp = new dataProcessor('db_connector.php');
			dp.init(mygrid);
		});

		$('#product').live('click', function(){
  			alert( 'My products' );
		});
		$('#service').live('click', function(){
  			alert( 'THe services I offer' );
		});
		$('#schedual').live('click', function(){
  			alert( 'My schedual' );
		});
		$('#register').live('click', function(){
  			alert( 'Registration List' );
		});

	});


</script>

	<div data-role="header"  data-position="fixed">
		<h1 style="font-size:1.5em; font-family:Georgia, sans-serif; ">Loxx by Lisa Dashboard</h1>

		<div data-role="navbar" data-iconpos="right" >
			<ul>
				<li><a href="#" id="clients">Client List</a></li>
				<li><a href="#" id="register">Registration</a></li>
				<li><a href="#" id="product">Products</a></li>
				<li><a href="#" id="service">Services</a></li>
				<li><a href="#" id="schedual">My Schedual</a></li>
			</ul>
		</div>
	</div><!-- /header -->
	<div data-role="content" style="width: 100%; height: 100%; background-image: url('background_loxx.jpg'); repeat-x">
		<div style="background-color: #000; height: 960px; width: 960px; border: 5px solid #D8D7D5; border-radius: 10px; margin: 10px auto 20px auto;">
			<div id="gridbox" style="width:650px;height:800px; margin: 20px auto 0 auto;"></div>
		</div>
	</div>




	<div data-role="footer" data-position="fixed">
		<a href="index.html"  class="ui-btn-left" data-theme="e">My Account</a>
		<h2>User: &nbsp;<span style="color: red">Lisa</span>&nbsp;&nbsp;&nbsp;Last login: &nbsp;<span style="color: green;">2:00pm Saturday May 5th 2012</span></h2>
		<a href="index.html"  class="ui-btn-right" data-theme="e">Logout</a>

	</div>
</div> <!-- /page -->
</body>
</html>

My connector

<?php

include './dhtmlxSuite/dhtmlxConnector/php/codebase/keygrid_connector.php';

$conn = mysql_connect("localhost", "root", "");
mysql_select_db("loxx", "MySQL");
$grid = new KeyGridConnector($conn);
$grid->render_table("clients","name", "name,address, town, phone, email");
$grid->enable_log("log.txt", true);

?>

Also I verified that database has been seeded but nothing?
[img]

[/img]

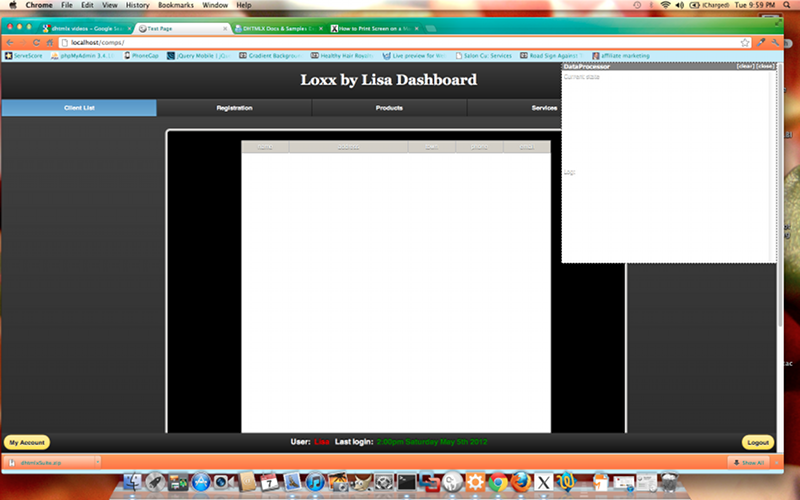

error-shot.png800×500 152 KB

#2

a)

mysql_select_db(“loxx”, “MySQL”);

probably must be

mysql_select_db("loxx", $conn);

php.net/manual/en/function.mysql-select-db.php

b)

Try to include one more file - dhtmlxconnector.js ( can be found in connector’s package ), be sure to put it on the page after dhtmlxdataprocessor.js

#3

I checked that but still can’t seem to get it to work.

#4

Found the problem its was my password…

Thanks!
