PDF Export in Month View

Scheduler Javascript
#1

Hi

I’m currently updating dhtmlxScheduler to version 7.2.3, and I’m getting the following JavaScript error.

image2552×775 56.4 KB

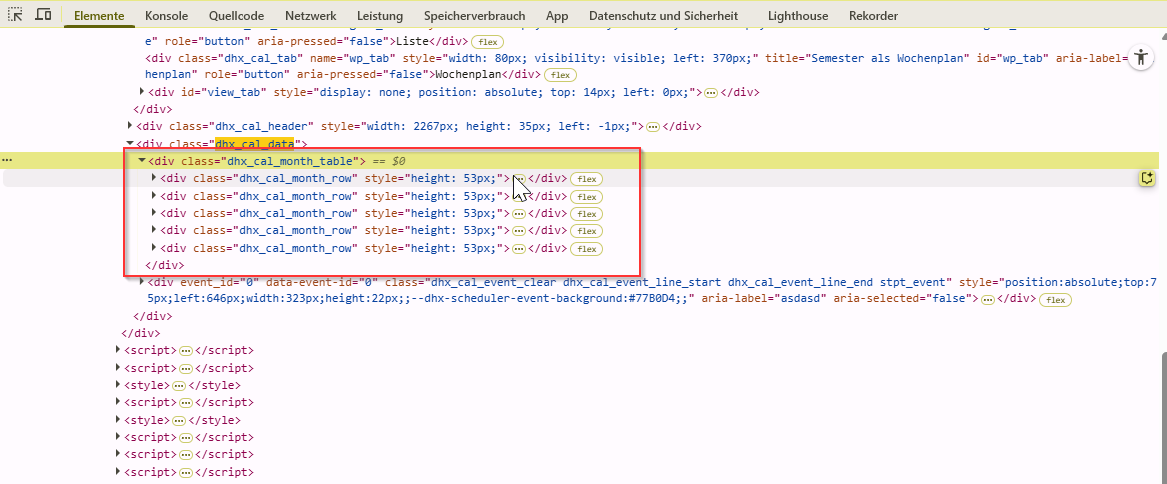

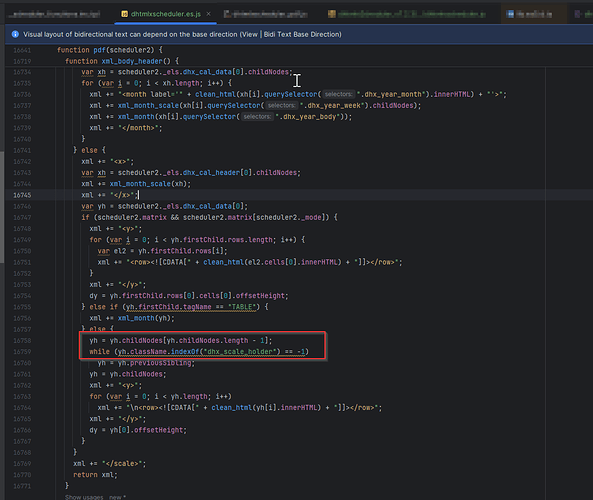

From what I can see, the structure has changed compared to the earlier version 6.0.5. Back then, there was a tagName with value “TABLE”, which seems to be missing now. Because of that, the code runs into the else block where the variable yh is not defined.

image1166×983 126 KB

image1167×484 49.7 KB

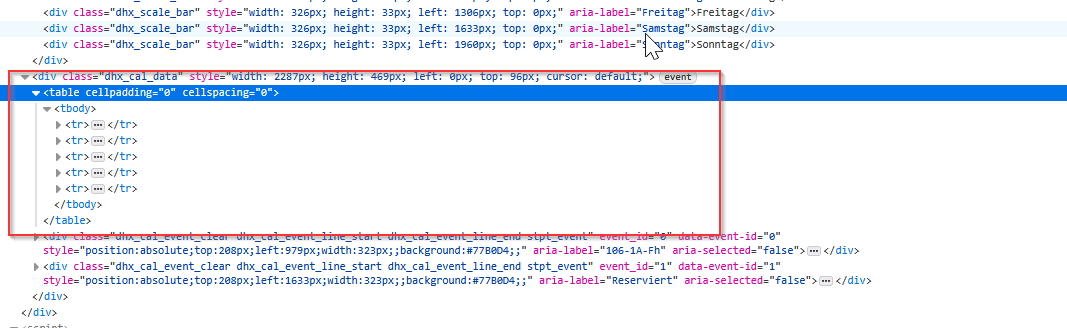

Before Update:

image1067×328 29.9 KB

We’re doing the export like this:
scheduler.toPDF(‘index.php?pageid=22231&id=$lapp&rasterid=’ + rasterid + ‘&first=’ + scheduler.config.first_hour + ‘&last=’ + scheduler.config.last_hour, ‘fullcolor’)

Is this a problem on our side? How can we fix or adapt the problem?

Kind regards
Jonas

#2

Hello @Jonas1 ,

As I can see in the provided code, you are using the “toPDF” method(which refers to really old scheduler versions).

The current export method is exportToPDF:
https://docs.dhtmlx.com/scheduler/api__scheduler_exporttopdf.html

Technically, changing export method should solve the issue, here is a demo with Export + Month view:
https://snippet.dhtmlx.com/vkc50leg

If it won’t fix the issue, could you please reproduce issue in the snippet above(open the demo => reproduce the issue => click the “Save” button => send me the new link)?

Kind regards,

#3

Is it possible to add customization options to the new export function, since we have a lot to configure there? Furthermore, we need to perform the local export rather than using the online export service due to our data privacy requirements, and we have both Linux and Windows systems.

Would a fix for the older toPDF be an option? That way, we could gradually transition to the new logic on our side.

Kind regards,

#4

Hello @Jonas1 ,

Yes, that’s possible to customize the new export, you can find information about supported options by the following link:
https://docs.dhtmlx.com/scheduler/pdf.html

Furthermore, we need to perform the local export rather than using the online export service due to our data privacy requirements, and we have both Linux and Windows systems.

Yes, there is a separate export module, that you can use locally:

Would a fix for the older toPDF be an option?

Unfortunately, there are no plans to update the old export module.

Kind regards,

#5

Hello @Siarhei

Okay, too bad, unfortunately this can’t be done anymore.
We can’t quickly rebuild this for this release.
We’ve added the following code so that printing the monthly view works again.
If you think you can take it as a fix on your side, that would be great.

// CB-JS-COMMENT Anpassungen für Update von Version 6 auf 7 START
// Alle Monatszeilen selektieren
document.querySelectorAll('.dhx_cal_month_row').forEach(row => {
    const numbersInRow = [];
    // In jeder Zeile alle Wochen-Zahlen extrahieren
    row.querySelectorAll('.dhx_month_head').forEach(head => {
        const num = head.textContent.trim();
        if (num) {
            numbersInRow.push(num);
        }
    });
    let numbersList = numbersInRow.join('|');
    k += `
<row><![CDATA[` + numbersList + "]]></row>";
});
t = document.querySelectorAll('.dhx_month_head')[0].offsetHeight;
// CB-JS-COMMENT Anpassungen für Update von Version 6 auf 7 ENDE
