Hi, iam trying use layout + tabbar + toolbar + grid and iam having one problem, i guess is something with css but i cant found a solution. Here is my problem.
dhxLayout = new dhtmlXLayoutObject("content", "2E");
dhxLayout.cells("a").hideHeader();
dhxLayout.cells("b").hideHeader();
dhxTabbarTop = dhxLayout.cells("a").attachTabbar();
dhxTabbarTop.setImagePath("../Scripts/dhtmlx_pro_full/imgs/");
dhxTabbarTop.setSkin("modern");
dhxTabbarTop.addTab("a1", "Tab 1-1", "100px");
dhxTabbarTop.setTabActive("a1");
toolbarObjTop = dhxTabbarTop.cells("a1").attachToolbar();
toolbarObjTop.setIconsPath("../Scripts/dhtmlx_pro_full/imgs/toolbar/icon_size/18/");
toolbarObjTop.setSkin("dhx_skyblue");
toolbarObjTop.addButton("open", 0, "", "open.gif", "open_dis.gif");
toolbarObjTop.addButton("save", 1, "", "save.gif", "save_dis.gif");
gridboxTop = dhxTabbarTop.cells("a1").attachGrid();
gridboxTop.setImagePath("../Scripts/dhtmlx_pro_full/imgs/");
gridboxTop.setHeader("Column A, Column B, Column B, Column B, Column B, Column B");
gridboxTop.setInitWidthsP("20,20,20,20,20,20");
gridboxTop.setColTypes("ro,ro,ro,ro,ch,ro");
gridboxTop.setColSorting("str,str,str,str,str,str");
gridboxTop.enableMultiselect(true);
gridboxTop.setSkin("dhx_skyblue");
gridboxTop.init();
gridboxTop.loadXML("500.xml", function () { });
dhxTabbarBottom = dhxLayout.cells("b").attachTabbar();
dhxTabbarBottom.setImagePath("../Scripts/dhtmlx_pro_full/imgs/");
dhxTabbarBottom.setSkin("dhx_skyblue");
dhxTabbarBottom.addTab("a1", "Tab 2-1", "100px");
dhxTabbarBottom.addTab("a2", "Tab 2-2", "100px");
dhxTabbarBottom.setTabActive("a1");
toolbarObjBottom = dhxTabbarBottom.cells("a1").attachToolbar();
toolbarObjBottom.setIconsPath("../Scripts/dhtmlx_pro_full/imgs/toolbar/icon_size/18/");
toolbarObjBottom.setSkin("dhx_skyblue");
toolbarObjBottom.addButton("open", 0, "", "open.gif", "open_dis.gif");
toolbarObjBottom.addButton("save", 1, "", "save.gif", "save_dis.gif");
gridboxBottom = dhxTabbarBottom.cells("a1").attachGrid();
gridboxBottom.setImagePath("../Scripts/dhtmlx_pro_full/imgs/");
gridboxBottom.setHeader("Column A, Column B, Column B, Column B, Column B, Column B");
gridboxBottom.setInitWidthsP("20,20,20,20,20,20");
gridboxBottom.setColTypes("ro,ro,ro,ro,ch,ro");
gridboxBottom.setColSorting("str,str,str,str,str,str");
gridboxBottom.enableMultiselect(true);
gridboxBottom.setSkin("dhx_skyblue");
gridboxBottom.init();
gridboxBottom.loadXML("500.xml", function () { });

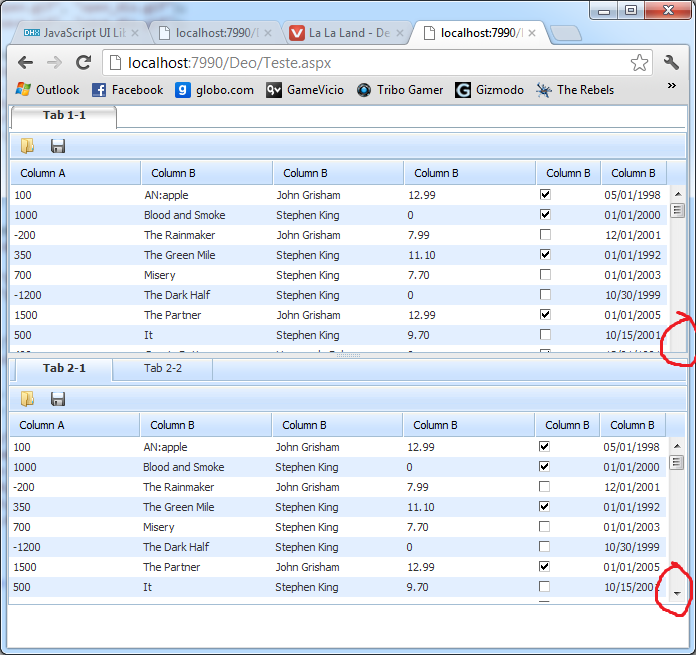

This problem occur when i use modern skin in TABBAR and attach toolbar … without a toolbar the size of grid is ok.
Any solution?
