Split form into tabs with editor not working

Suite and Optimus Suite 5
#1

Hi,
i use dhtmlx_v45 and Chrome 46.0.2490.71 m

When create form by xml and split into tabs, can’t type into editor. the editor is there, but does not allow write. the cursor does not appear

// ******* xml ***************
/* … /
echo(’’);
echo(’’);
echo (’’);
echo(’’);
/ … */

// ********* js *********
/* … /
myForm = new dhtmlXForm(“dhxForm”);
myForm.loadStruct("./xpto/forms/xpto.php");
myForm.attachEvent(“onXLE”, function () {
myTabbar.tabs(“a4”).attachObject(“tab4”);
});
/ … */

#2

Hi
Try attached demo - i added all the code you need to get it work.
tabbar_form_editor.zip (341 KB)

#3

Hi Darya,

thank you!

#4

You are welcome!

#5

Hi,

now i have new problem!

when load form by xml i set value in a editor but then don’t show’s up.

//***** XML / PHP **********


//********** JS **************************************************
myForm = new dhtmlXForm(“dhxForm”);
myForm.loadStruct(“./recrutamento/forms/edit_recrutamento.php?id=”+selId);
myForm.enableLiveValidation(true);

myForm.attachEvent(“onXLE”, function () {

myTabbar.tabs(“a2”).attachObject(“tab2”);
myTabbar.tabs(“a3”).attachObject(“tab3”);
myTabbar.tabs(“a4”).attachObject(“tab4”);
myTabbar.tabs(“a5”).attachObject(“tab5”);//tab of editor
myTabbar.tabs(“a6”).attachObject(“tab6”);

            myForm.getEditor("experiencia_profissional")._prepareContent(true);

});

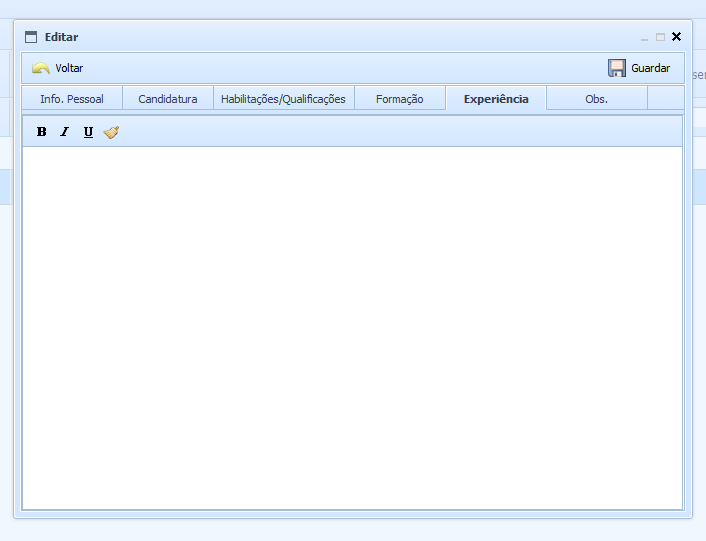

zxc.png706×541 9.78 KB

#6

what is the problem to use direct tabbar.tabs().attachEditor() ?

#7

hi Andrei,

thank you by response.

don’t have any problem when attaching editor to tab.
i’m trying to pass one editor by de form to a tabbar and value of te editor is not appering.

#8

well, then try the following, when tab with editor becomes visible:

myTabbar.attachEvent("onSelect", function(id){ if (id == "a5") { window.setTimeout(function(){ myEditor._prepareContent(true); // or myForm.getEditor(name)._prepareContent(true); },1); }; return true; });

and make sure

is exist on page (or how your form will inited?)
#9

sorry, tab id should be “tab5” (not “a5”)

#10

thank you by solution, but don’t resolve my problem.

My problem is: i have one form load by xml and separated after load into tabs. when i put values in editor, this values don’t show up. the editor is empty.

#11

Hi

Could you please provide us complete demo including all correspondnig js/css files?
Please also add information regarding current and expected behaviour.

Here is a small guide how to make a complete demo:
docs.dhtmlx.com/tutorials__auxil … pport.html

If you’re using PRO or ENT edition, please send your demo to support@dhtmlx.com
