this.entBox.parentNode is null

Suite 7.0/6.0/5.0 and Optimus Suite 5.0
#1

Hi,

we have two layouts.
The first is a 2U layout with “a” → tree and another layout in “b”.

The second Layout holds some DHTMLX-Grids (in every cell one - cellcount dynamically).
When Layouts are loaded but grids are not everything works fine.

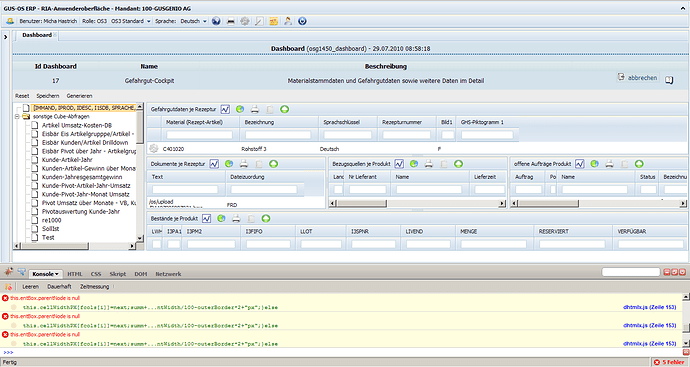

But after loading grids i get errors when i’m trying to resize the page (see attachment).

var treeLayout = new dhtmlXLayoutObject("osmdxData", <% if ("update".equals(dashboardModus)) { %>"2U"<% } else { %>"1C"<% } %>);
treeLayout.cells("a").hideHeader();
<% if ("update".equals(dashboardModus)) { %>
	   treeLayout.cells("a").setWidth(275);
<% } %>
[...]
dashboard = new dhtmlXLayoutObject(treeLayout.cells(<% if ("update".equals(dashboardModus)) {%>"b"<% } else {%>"a"<% } %>), "<%= layout %>");
dashboard.dhxWins.enableAutoViewport(false);
dashboard.dhxWins.attachViewportTo("osmdxData");
[...]
(for drag & drop)
dhxGrid[i] = dashboard.cells(buchstaben[i]).attachGrid();
[...]
niceGrid[i] = dashboard.cells(buchstaben[i]).attachGrid();

Is it a problem that Grid is attached to same cell?
We have a grid for drag&drop at first, because layout doesn’t support drag & drop and afterwards a “nice” grid with data is attached to the same cell.

What happens with the old grid when attaching a new one to a cell?

2010-07-29_085905.png1440×766 76.5 KB

#2

You should not attach 2 grids at one dhtmlxLayout cell. Each grid should be attached to separate dhtmlxLayout cell.

#3

Is it possible to attach drap&drop handler to Layout cell, so that we can drop the first grid?

#4

No, drag&drop handler must be attached to dhtmlxGrid instance.
