Tree - Combobox as node

Stefan_Riedel-Seifer · November 5, 2009, 6:54am

Hello,

is it possible to attach a comboxbox as node? i have a huge tree and want to let the user have a kind

of elegant possibility to filter the nodes. Okay, i can do this also outside, but by attaching it to a nod, it is very clear from

the ui perspective to what node, the filter corresponds.

Example:

A combobox beneath the Object node with possible Statuses:

Objects [STATUS]

|

----

Best regards, Stefan Riedel-Seifert

Alex_V_Tech_Support · November 5, 2009, 8:29am

Hello,

you can place html elements into the tree. In case of xml loading:
…

<![CDATA[

]]>

…
If you meant dhtmlxcombo, it can be initialized after xml loading as follows:
…
tree.loadXML(url,function(){
    combo = new dhtmlXCombo(“combo_zone”,“alfa”,200);
    combo.loadXML(combo_xml);
    combo.attachEvent(“onChange”,function(){
         /your code here/
    })
})

But tree doesn’t provide API for filtering. Possibly filtering can be executed by smartRefreshItem method.

tree.smartRefreshItem(itemId,url+"?combo_value="+combo.getActualValue());
Here url is path to server-side script that should returns the xml with necessary child nodes.

Stefan_Riedel-Seifer · November 6, 2009, 9:49am

Hi,

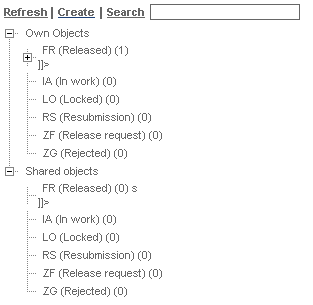

the xml is well formed and looks good, but the display is corrupt and the combobox doesn’t load.

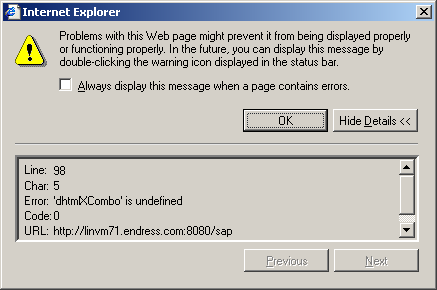

i could’nt find the error .

Best Regards, Stefan

Alex_V_Tech_Support · November 6, 2009, 10:40am

Please, check that dhtmlxcombo libraries are included. You can download the package here dhtmlx.com/docs/products/dht … _init.html

Regarding incorrect display - could you please provide the example of the xml, that you try to load, and code of tree initialization.

Anonymous · November 6, 2009, 10:59am

Hi,

the files are correctly bound: i can instantiate a separate combobox via:
<div id=“combo_zone2” style=“width:200px; height:30px;”></div>

<script>

var z = new dhtmlXCombo("combo_zone2", "alfa2", 200); z.readonly(1); z.loadXML("../common/data.xml");

</script>

I can avoid the incorrect display by

SPAN { font-family: "Arial monospaced for SAP"; font-size: 8pt; color: #000000; background: #FFFFFF; } .L0S33 { color: #4DA619; } <![CDATA[<div id=combo_own></div>]]>

but will get ann error on the page 'Object required'.

If i use SPAN { font-family: "Arial monospaced for SAP"; font-size: 8pt; color: #000000; background: #FFFFFF; } .L1S52 { color: #0000FF; } <div id=combo_own> my xml looks like:

<?xml version="1.0" encoding="utf-8" ?>

- <tree id="0" open="0">

- <item text="Own Objects" id="o" open="0">

<item text="FR (Released) (1) <![CDATA[
]]>" id="o~FR" child="1" im0="s_CLOFOL.gif" im1="s_OPFOLD.gif" />

</item>

- <item text="Shared objects" id="s" open="0">

</item>

</tree>

But the display is incorrect and the javascript error is the same 'Object required'.

Best regards,

Stefan

Anonymous · November 6, 2009, 11:02am

i’ve changed the encoding to

SPAN { font-family: "Arial monospaced for SAP"; font-size: 8pt; color: #000000; background: #FFFFFF; } .L1S32 { color: #3399FF; }

iso-8859-1 , but the same result

Alex_V_Tech_Support · November 6, 2009, 11:31am

The provided xml isn’t correct. The correct one is

<?xml version="1.0" encoding="utf-8" ?>

<![CDATA[ FR (Released) (1)

]]>

<![CDATA[ FR (Released) (1)

]]>

Anonymous · November 6, 2009, 1:07pm

… okay, misunderstanding from my side.

the code is

SPAN { font-family: "Arial monospaced for SAP"; font-size: 8pt; color: #000000; background: #FFFFFF; } .L3S32 { color: #7D9EC0; } .L3S33 { color: #009300; } .L3S50 { color: #00008B; }

                    tree.loadXML(“objects.xml?uname=<%=sy-uname%>”,function(){
                     combo = new dhtmlXCombo(“combo_own”,“alfa”,200);
                     combo.loadXML(combo.xml);
                     combo.attachEvent(“onChange”,function(){ })
                    })

the xml

<?xml version="1.0" encoding="utf-8" ?>

- <tree id="0" open="0">

- <item text="Own Objects" id="o" open="0">

- <item id="o~FR" child="1" im0="s_CLOFOL.gif" im1="s_OPFOLD.gif">

- <itemtext>

- <![CDATA[

]]>

</itemtext>

</item>

</item>

- <item text="Shared objects" id="s" open="0">

</item>

</tree>

the combobox appears in tree, but without list entries and a javascript error: 'undefined' is null or not an object.

if i load the options via SPAN { font-family: "Arial monospaced for SAP"; font-size: 8pt; color: #000000; background: #FFFFFF; } .L0S32 { color: #3399FF; } combo.addOption([[1,1111],[2,2222],[3,3333],[4,4444],[5,5555]]);

all is fine.

If changed to combo.loadXML("combo.xml"); and now all is ok.
